MLK Jr Way Safety Project

April 26, 2023

Creating a new bike connection and a safer street

What's happening now?

Pre-Construction Timeline Graphic

Project Update!

This project has been renamed to MLK Jr Way Safety Project to reflect our focus on safety improvements for people walking, rolling, biking, and driving in this area.

This project is scheduled to begin construction as soon as summer 2023, with approximately 180 working days. We had to shift the construction schedule from November 2022 to mid-2023 for a couple of reasons. This project is federally funded in addition to crossing a state jurisdiction, which has required both federal and state interagency review. The final design review and coordination process has taken longer than originally forecasted and we are now on track to begin construction mid-2023.

We are excited to be building this new bike route because:

  • This project was identified in the 2019 BMP (Bike Master Plan) Implementation Plan through community requests for a north-south bicycle route through southeast Seattle.
  • Once this project is complete, we will have a bicycle route that will allow people of all ages and abilities to safely bike to:
    • I-90 Trail;
    • Mt Baker Station and future Judkins Park Station; and
    • North Rainier Valley Neighborhood Greenway.
  • This project will help to fulfill the City's Bicycle Master Plan and vision to make riding a bike an integral part of daily life in Seattle.


We appreciate your continued patience as we get ready to construct this safety improvement project and a new, protected bike route. As we finalize the construction schedule, we'll be sure to share that information with you here on the project webpage and via email updates.

Questions about the project?

Email us at MLKWay@seattle.gov or leave us a voicemail at 206-900-8750.

Project Overview

This project began in 2020 following outreach for the citywide Bicycle Master Plan Implementation Plan back in 2019. We heard loud and clear a need for more connections in Southeast Seattle, especially heading north and south. This community process helped identify MLK Way Jr Way as a top priority citywide. SDOT is building a protected bike lane on each side of Martin Luther King Jr Way S between the Judkins Park and Mt Baker Link light rail stations (S Judkins St to Rainier Ave S).

The purpose of this project is to improve safety for people walking, rolling, biking, and driving, and create better connections to transit and to destinations between Mt. Baker Station and the future Judkins Park Station. Once the project is complete, it will complete part of the bike network, connecting the I-90 bike path and neighborhood greenways to provide safe and comfortable cycling trips between Mount Baker and Downtown Seattle, as well as the neighborhoods in between.

Project Needs

MLK Way has been identified as a high-priority corridor for meeting the following transportation and community needs:

  • Provide a better north/south bike connection in southeast Seattle
  • Contribute to the City’s Vision Zero goal to end traffic deaths and serious injuries
  • Provide neighborhood connections to the future Link light rail station

Conversations with community members and other stakeholders, as well as technical analyses, have informed our current project plans.

Project elements along MLK Way include:

  • Protected bike lanes on both sides of MLK
  • Road redesign to create safer and streamlined conditions for all road users
  • Changes to parking to support bike lane installation while providing access to local businesses
  • New roadway paint to improve safety conditions for bikes
  • Safer conditions for pedestrians, including widened sidewalks and crosswalks

Benefits

  • Connect people to transit and schools: This will be an important connection to both light rail stations as well as the I-90 Trail, Franklin High School, and the Metro Transit Center. The I-90 Trail is a regional connection that will improve access to downtown and the region's growing trail network from Southeast Seattle.

  • Improve safety for people who walk, bike, and drive on MLK: This section of MLK Way has high rates of speeding, head-on collisions, and off-the-road collisions compared to other parts of the city. Redesigning the street will help to reduce speeding and make the street safer, more predictable, and more comfortable for everyone.

Protected bike lanes uniquely provide a separate, protected space for people biking that is differentiated from motor vehicle travel lanes, parking lanes, and sidewalks. The purpose of this new infrastructure is to improve neighborhood connectivity, increase mobility and transportation options, and enhance both pedestrian and bike safety in southeast Seattle.

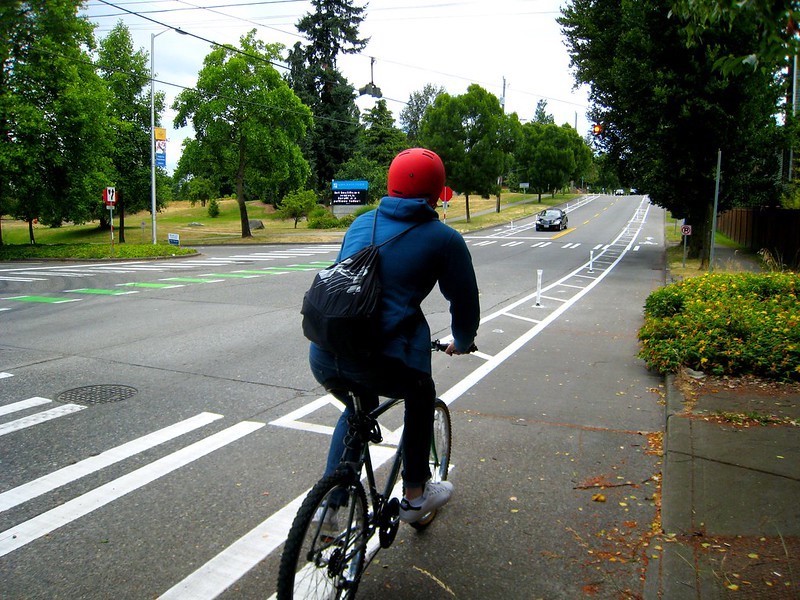

Image of a person wearing a red hat, blue sweatshirt and jeans, and a drawstring backpack biking on a protected walkway. There are paint stripes and small, white flexible delineators acting as a buffer between the bike and traffic lanes.

A protected bike lane in Seattle (SDOT photo)

We're focusing on the section of Martin Luther King Jr Way S between the Judkins Park and Mt Baker light rail stations (S Judkins St to Rainier Ave S). We had been studying the feasibility of a protected bike lane on MLK between Rainier Ave S and S Henderson St., but we put a pause on that portion of the project in response to the significant decline of revenues for the City and our funding partners related to the COVID-19 crisis. Read more on the SDOT blog.

As part of the latest Bike Master Plan Implementation Plan, Martin Luther King Jr Way S was identified as an important southeast Seattle bike connection. SDOT uses the following criteria when prioritizing projects: safety, connectivity, equity, ridership, and livability, as well as policy directives, community interest, and geographic balance.

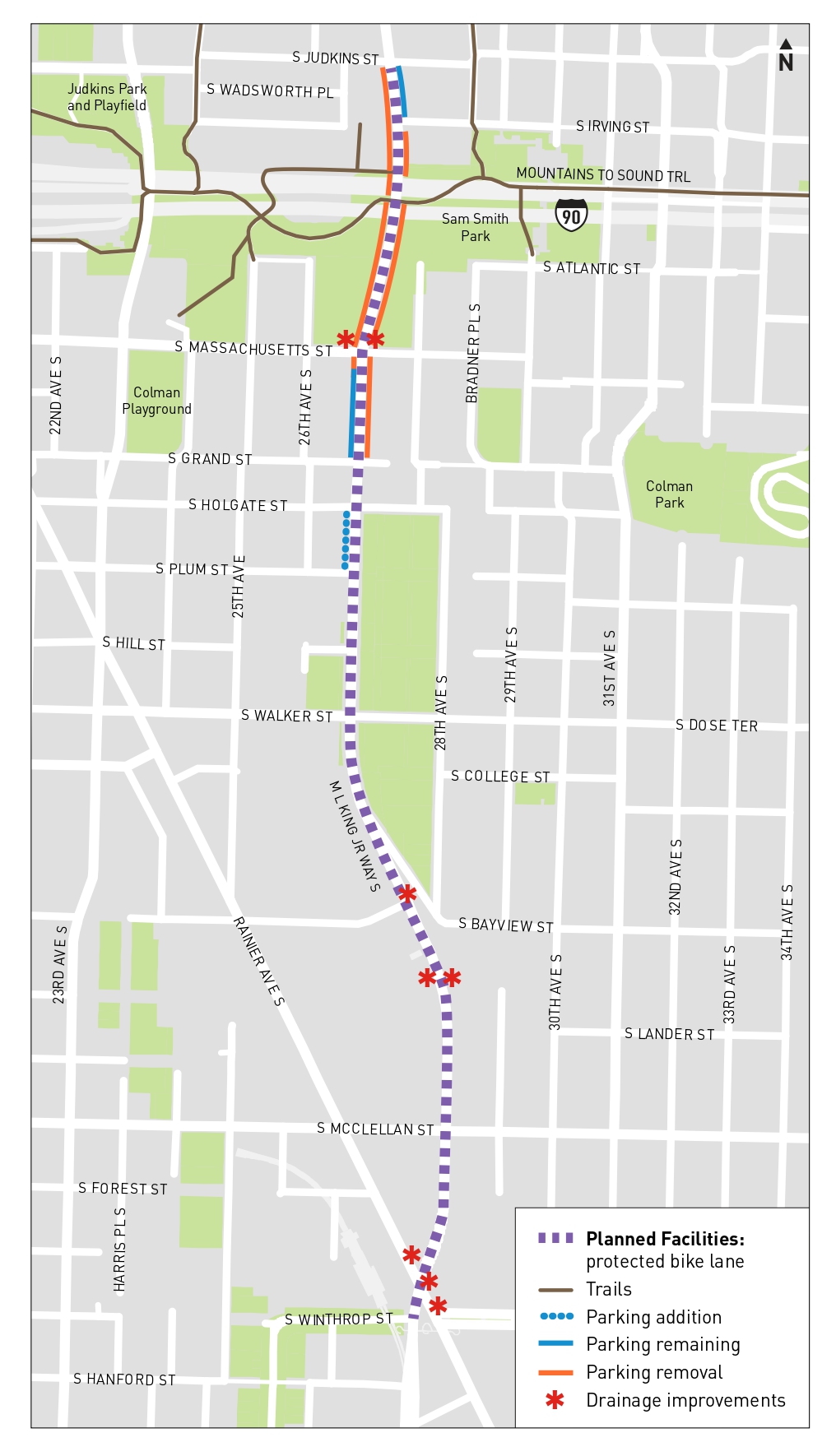

Project Map

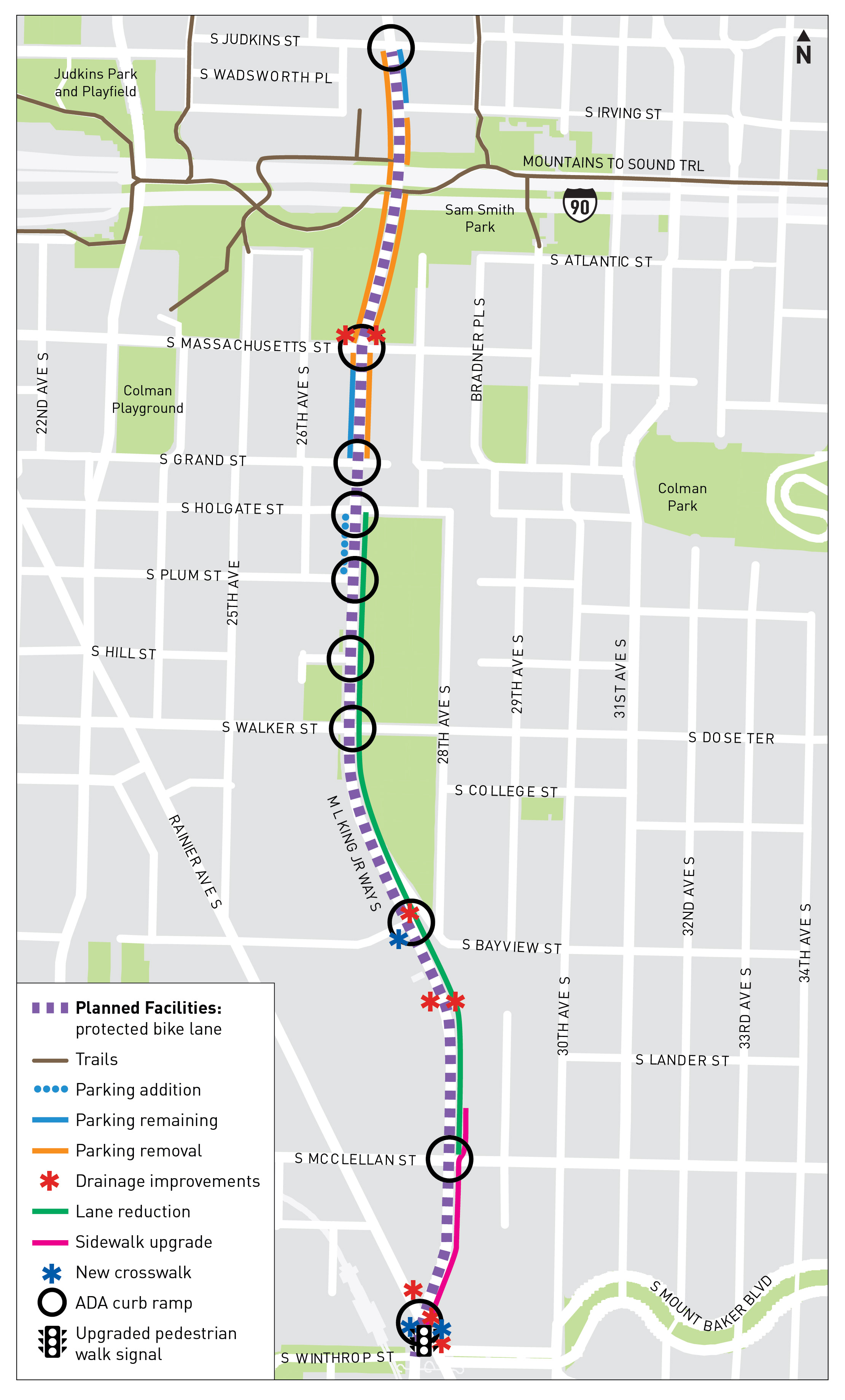

MLK Protected Bike Lane Project Map

Final Project Design

S Judkins St and MLK Jr Way S improvements

Improvements at this intersection include:

  • bike lane located between travel lane and sidewalk on west side of street
  • bike lane located between parking and sidewalk on east side of street
  • new ADA curb ramps at all four corners
  • markings for people biking, walking, and driving

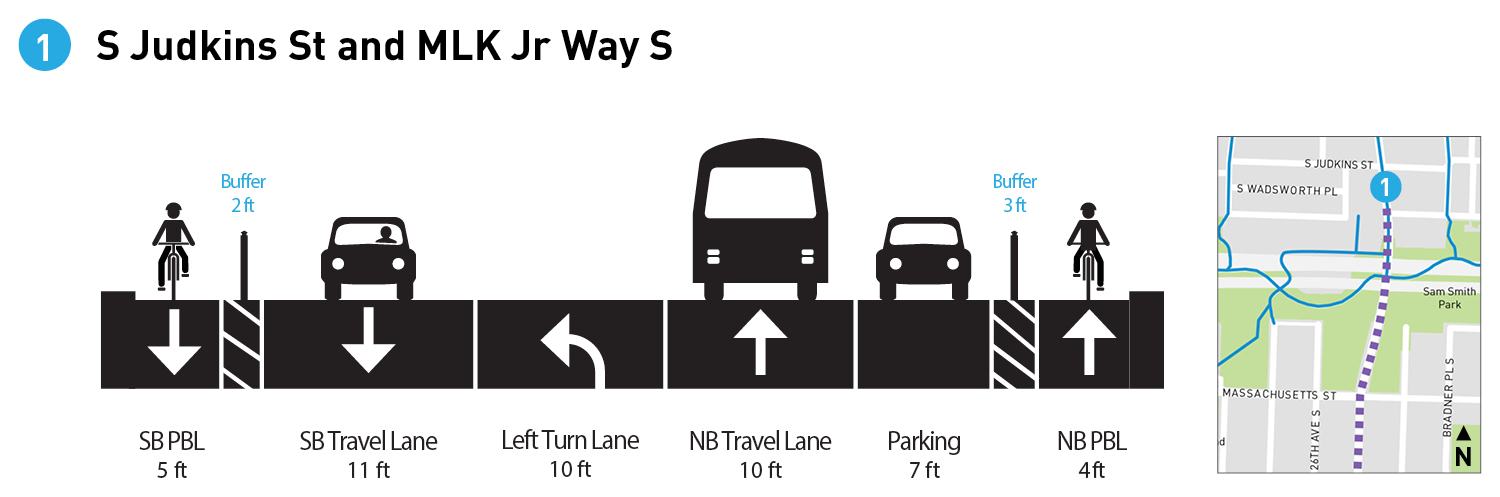

MLK and Judkins Cross Section Graphic

MLK and Judkins Intersection Diagram

I-90 Trail and MLK Jr Way S improvements

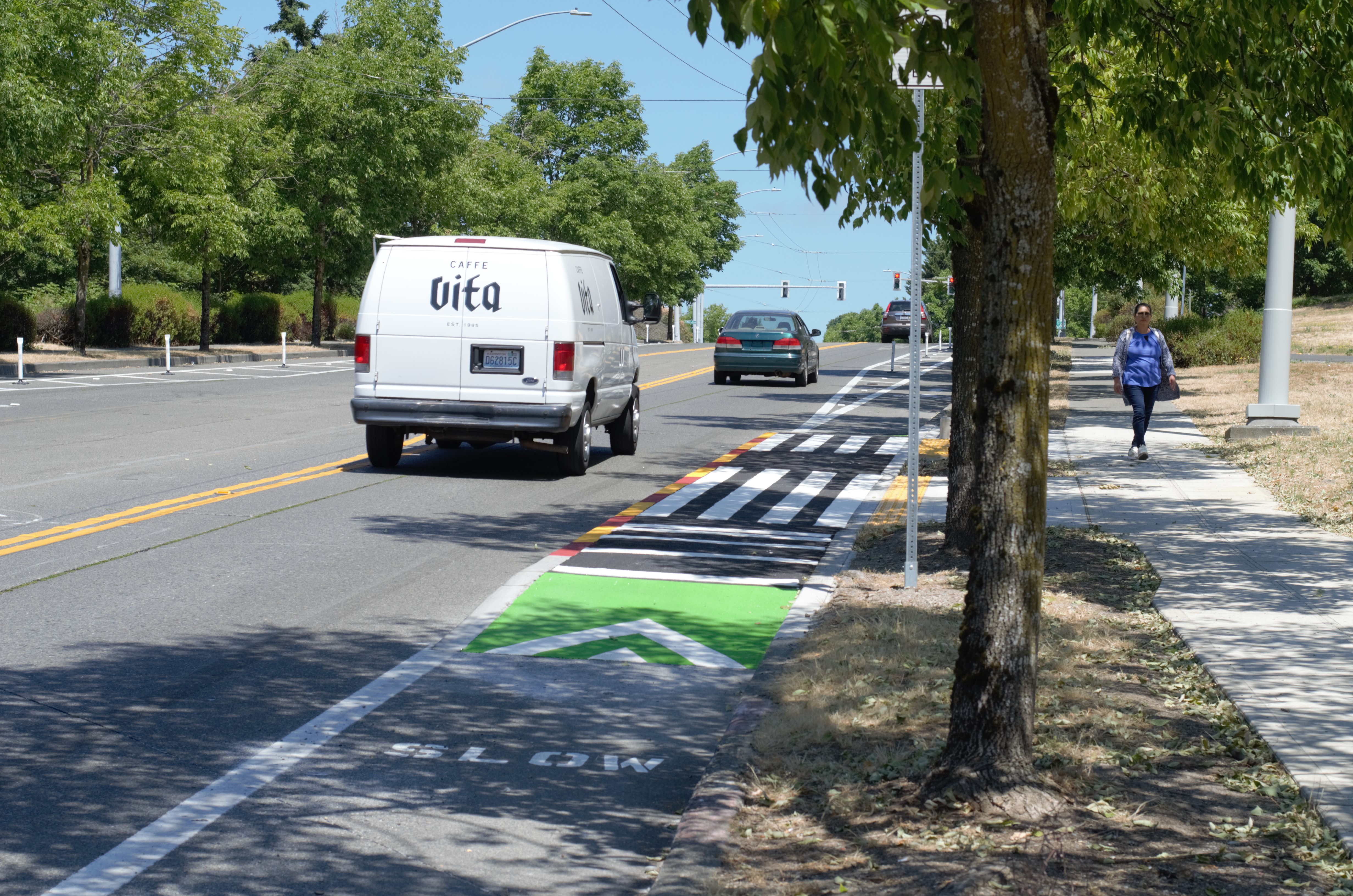

At the I-90 trail connection, we've designed raised protected bike lanes and bus islands to accommodate people biking, walking, taking the bus, or driving. The shared bus stop will reduce interactions between bikes, cars and buses on the corridor, providing improved safety and predictability for all users, and will help keep transit moving to improve travel time for people riding buses.

The design elements include:

  • bike lane transition from street grade to sidewalk grade with slow down line markings
  • bike lane located between travel lane and sidewalk
  • sidewalk level pedestrian crosswalks cross the raised protected bike lane
  • markings for people biking, walking, or using transit
  • passengers board and alight (exit) into the bike lane
  • bikes must yield to passengers boarding/alighting

In addition to the design features listed above, the project will also add right turn bicycle ramps to access the I-90 Trail. Unique bus stop announcements will be added to buses serving the shared stops. These announcements will alert exiting passengers to "watch for bikes when exiting the bus" as buses approach the shared stops.

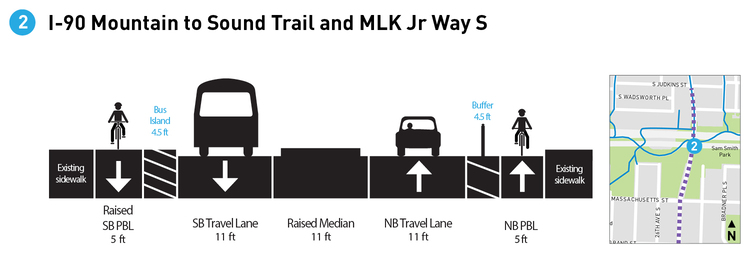

MLK Protected Bike Lane Project I-90 Connection Graphic

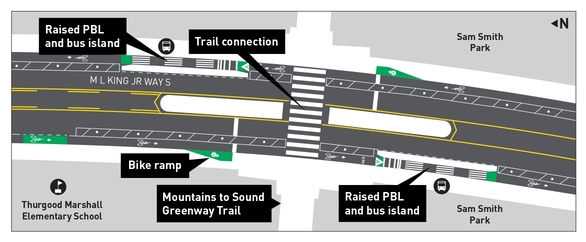

MLK and I-90 Trail Connection Overhead Diagram

S Massachusetts St and MLK Jr Way S improvements

Currently, this street has one travel lane in each direction, a center turn lane, and parking on both sides. There are sidewalks present, but no bike lanes. Our proposed design introduces protected bike lanes to both sides of the street. Other design elements include:

  • Protected bike lanes on both sides of the street
  • Green pavement markings to highlight where cyclists will be present
  • Turn boxes to help cyclists safely make left turns
  • Bike signal at S Massachusetts St for southbound bike lane
  • Shared raised protected bike lanes and bus stops where buses remain in travel lane
  • Removed parking on the east side of the street
    • Preserved parking on the west side is closer to community centers and businesses

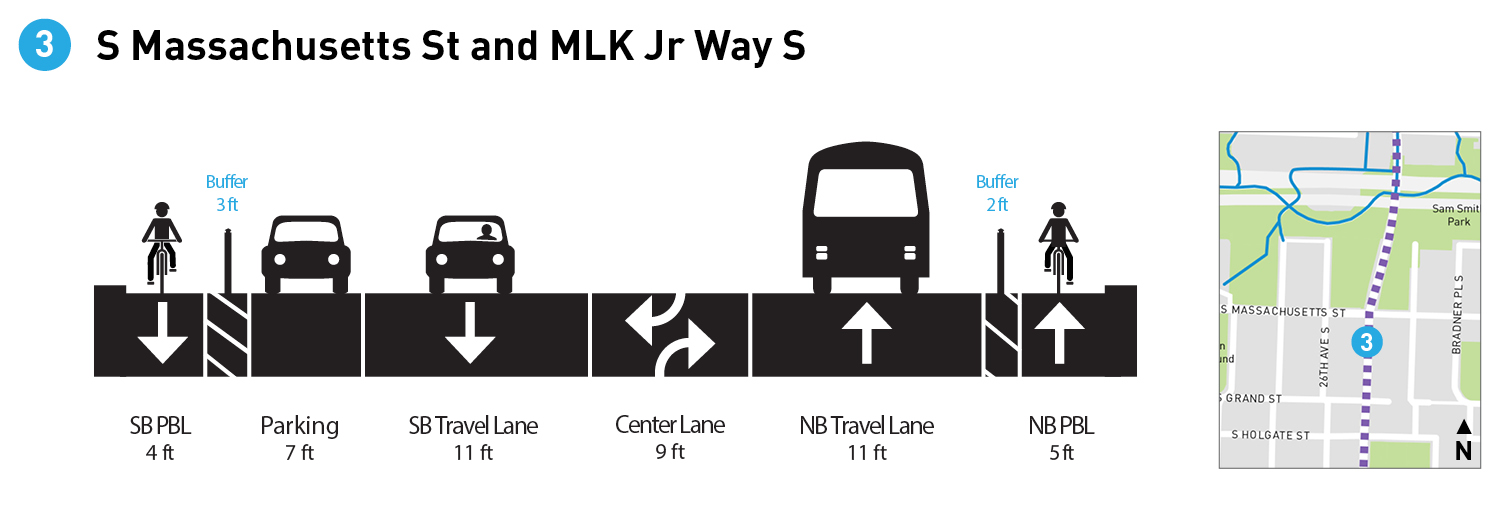

MLK PBL Project S Massachusetts Graphic

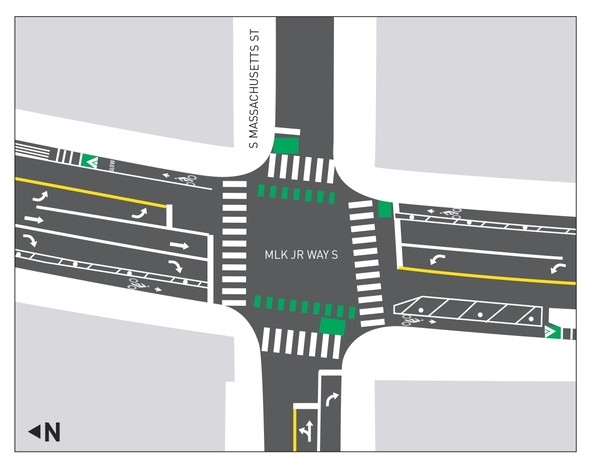

MLK and Massachusetts Diagram

MLK and Massachusetts Signal Phase

S Bayview St and MLK Jr Way S improvements

This corridor has four travel lanes and a center turn lane. There are no bike facilities, and the sidewalk is missing on the east side of the street between S Bayview St and S McClellan St. Our proposal for this corridor will remove two travel lanes and includes:

  • Protected bike lanes on the both sides of the street
  • A protected multiuse path on the east side of the street, south of S Bayview St with a detectable strip between cyclists and pedestrians.
    • This path will be separated from vehicle traffic by a concrete barrier
  • Drainage and pavement repairs and upgrades
  • Upgraded curb ramps
  • Green pavement markings to highlight where cyclists will be present

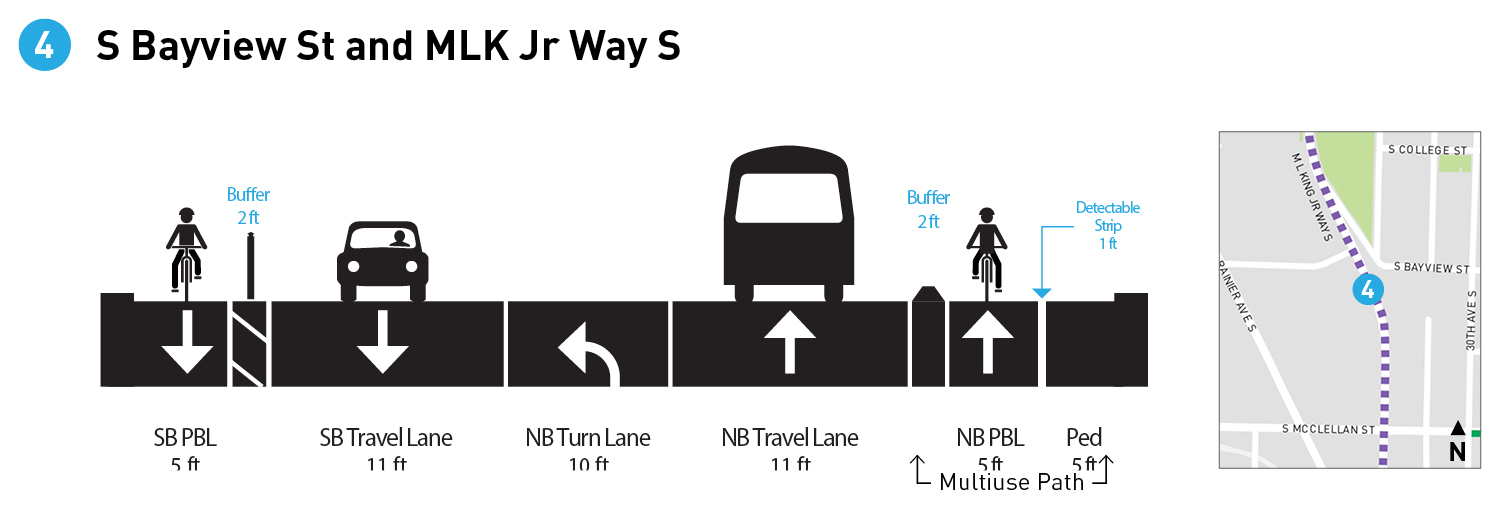

MLK PBL Project S Bayview St 60% Design Graphic

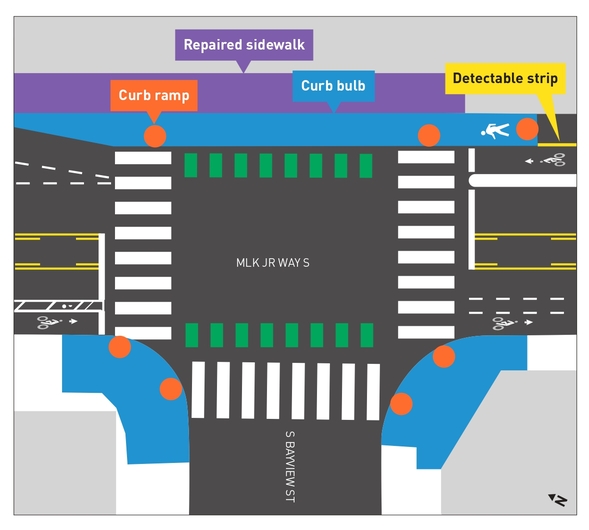

MLK and Bayview Intersection Diagram

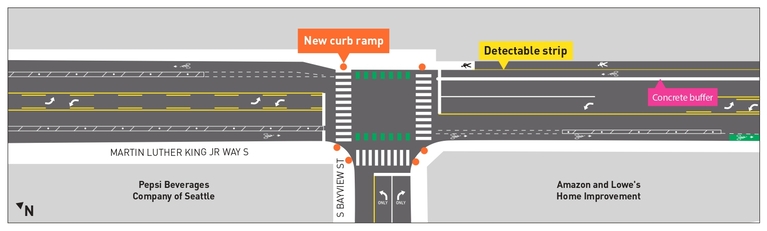

MLK and Bayview Intersection Extended Diagram

S McClellan St and MLK Jr Way S improvements

Currently, the street has four travel lanes that become a left turn lane at S McClellan St. This corridor is heavily used by Metro buses accessing the current location of the Mt Baker Station. Our proposed design for this corridor will remove two travel lanes and includes:

  • Protected bike lanes on both sides of the street
  • A protected multiuse path on the east side of the street north of S McClellan St, with a detectable strip between cyclists and pedestrians.
    • This path will be separated from vehicle traffic by a concrete barrier
  • Openings in the proposed bike lane to maintain access to businesses and the transit center
  • Green pavement markings to highlight where cyclists will be present
  • Other pedestrian improvements that were a part of the Accessible Mount Baker Project

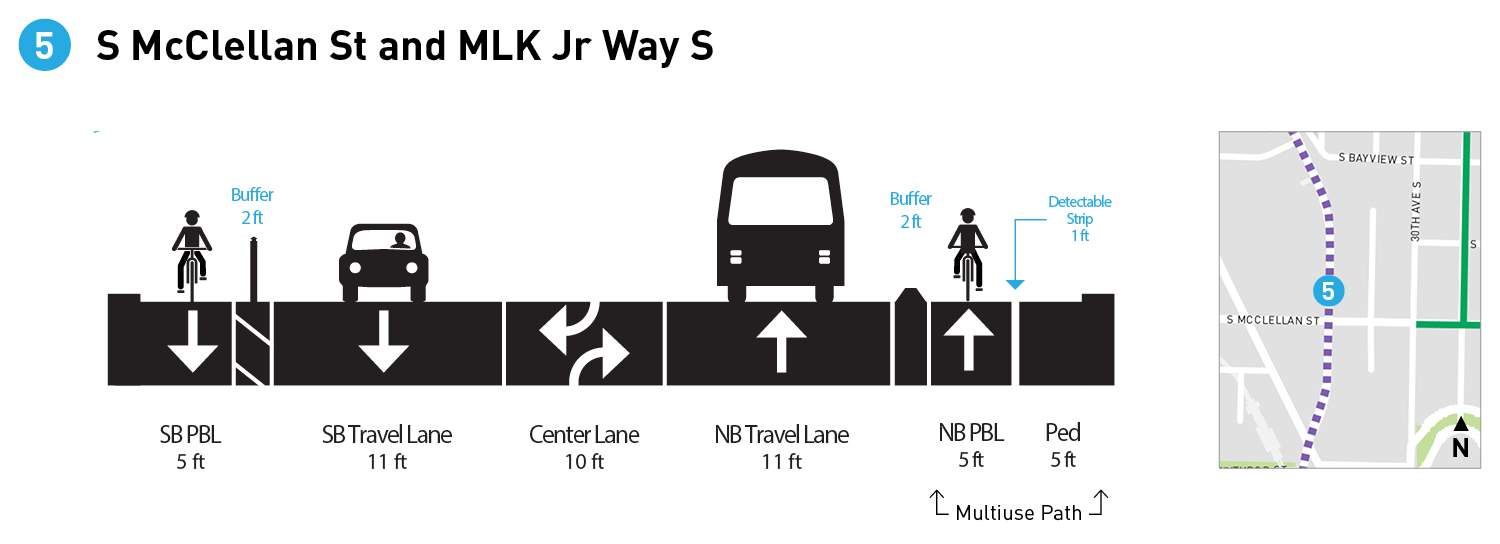

MLK PBL Project S McClellan St Cross Section

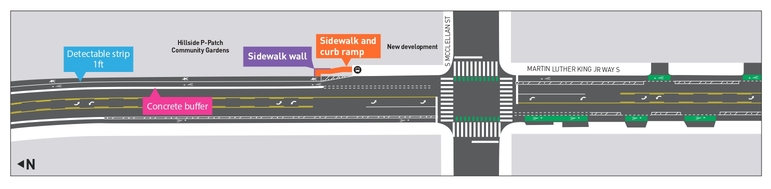

MLK and McClellan Intersection Diagram

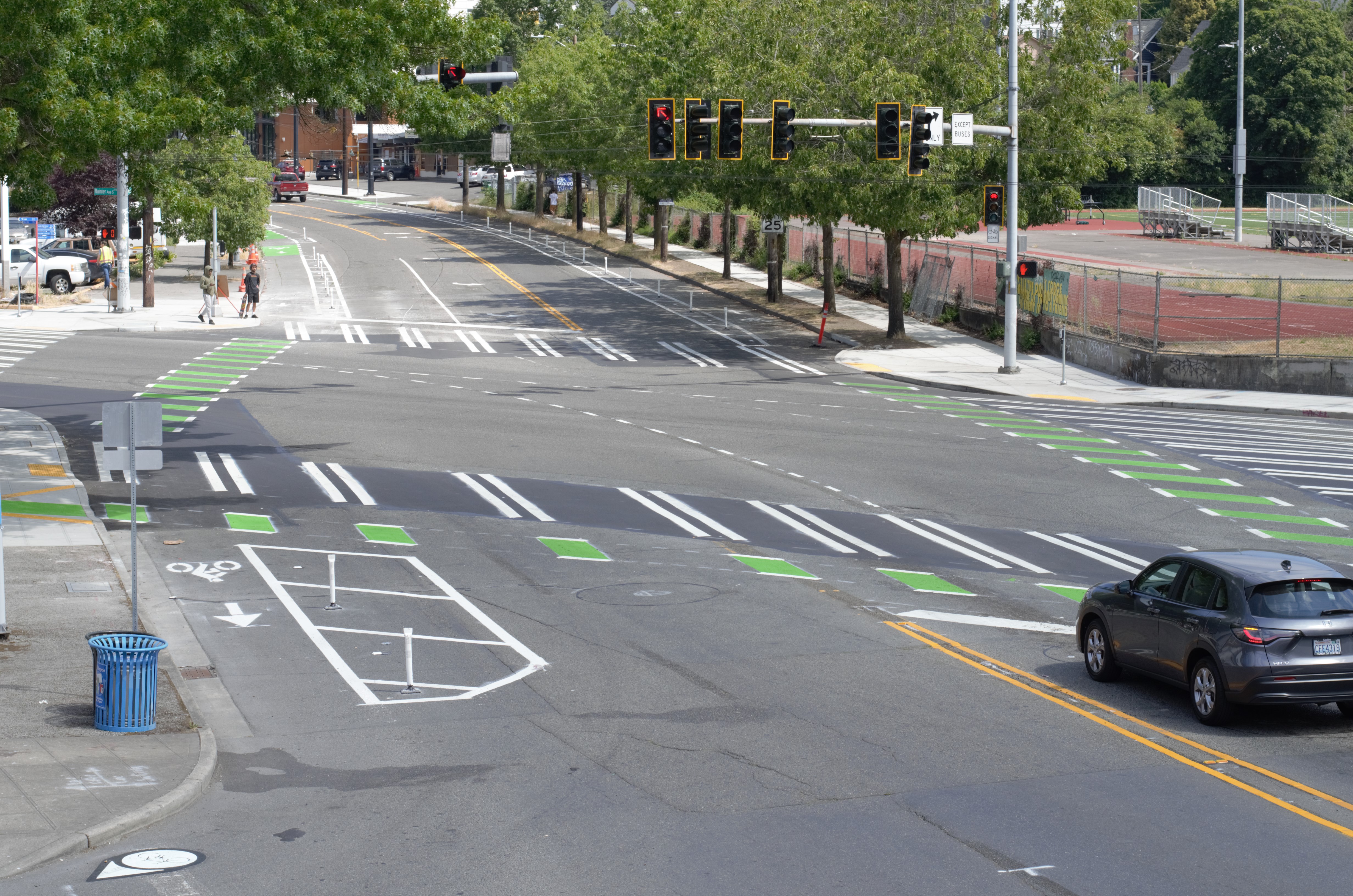

Rainier Ave S and MLK Jr Way S improvements

The near-term improvements from the Accessible Mount Baker Project have been merged with the MLK Protected Bike Lane Project. To see full details on the Accessible Mount Baker Project, please visit the project webpage. Improvements in this area include:

  • New and widened curb bulbs and crosswalks to create shorter crossings
  • Widened and repaired sidewalks for additional sidewalk space
  • Right turn restrictions from Rainier to MLK
  • Protected bike lanes that connect to the Mt Baker Light Rail Station

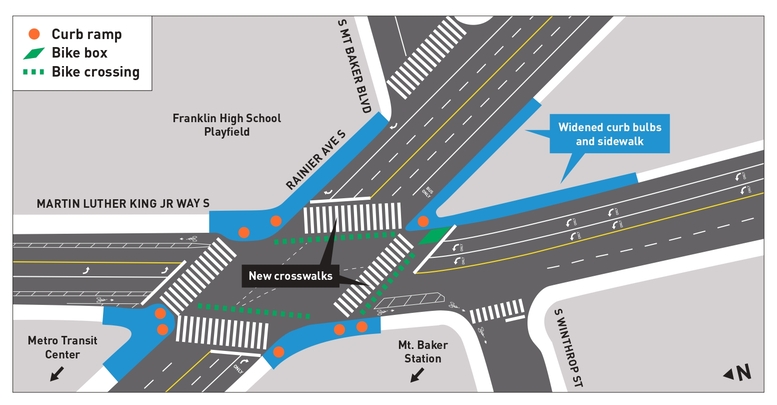

Rainier and MLK Intersection Diagram

Project Schedule

May 2020: Selected preferred alternative

Autumn 2020: Developed 30% design

Early 2021: Finalize 30% design

Spring 2021: Finalize 60% design

Fall 2021: Final Design complete

Fall 2022: Construction expected to begin

Community Outreach

We want this design to work for not just people who bike, but also everyone who lives and works in the area. Please feel free to get in touch with us to ask questions or set up a meeting: MLKWay@Seattle.gov or (206) 900-8750

Summer 2019 MLK was identified as an important Southeast Seattle bike connection as part of the latest Bike Master Plan Implementation Plan
Early 2020 Phone interviews with project neighbors and interested stakeholders
Spring 2020 Mailer, online survey and other outreach to engage neighbors in the early design
Summer 2020 Mailer, online early design drop-in session with Live Q&A, online survey and additional outreach to neighbors and community members
Fall 2020 Mailer, online early design (30%) drop-in session with Live Q&A, online survey and additional outreach to neighbors and community members
Spring 2021 Mailer, door hangers, posters, A-frames, 60% design drop-in session with Live Q&A, online survey, pop-up event, stakeholder interviews, and additional outreach to neighbors and community members
Ongoing Email and web updates

Materials

July 2021 Outreach Summary

April 2021 Drop-in Session Recorded presentation

April 2021 Drop-in Session Presentation Script

April 2021 Drop-in Session Q&A

May 2021 Updated Fact Sheet

April 2021 Drop-in Session Q&A

Early Design Project Map

Accessible Mount Baker Proposed Biking/Walking Improvements

January 2021 Updated Fact Sheet

November 2020 Outreach Summary

November 2020 Drop-in Session Q&A

August 2020 Outreach Summary

August 2020 Drop-In Session Q&A

Spring 2020 Outreach Summary

March 2020 Fact Sheet

Channelization Graphics
