Burke-Gilman Trail Missing Link

Updated: January 4, 2022

What’s happening now?

  • We have refined the Burke-Gilman Trail Missing Link design to address previous community concerns and allow us to start construction as soon as next year.
  • The design refinements adjust the project to meet changing conditions along the corridor, such as eliminating the need to relocate railroad tracks on Shilshole Ave NW and NW 45th St.
  • SDOT anticipates 7 months of construction starting in 2022 or 2023, putting the City on pace to deliver the project as a part of the nine-year Levy to Move Seattle which sunsets in 2024.
  • We expect that pre-construction outreach will begin in 2022.

The design refinements remove railroad relocation from the scope and reduce the overall amount of paving needed, which will cut the construction time roughly in half, significantly reducing the effects on Ballard businesses, residents, travelers, and visitors. The design preserves essential safety features where the trail crosses driveways and intersections, and the community preferred route of Shilshole Ave NW is maintained. These pragmatic adjustments maintain design standards and simplify some of the steps required to move the project forward to construction. 

Next Steps

We are currently working on completing the final design documents and obtaining the required permits for construction. As we move forward, we will continue to share project updates through our website, project emails, and through online discussions.

Overview

The Burke-Gilman Trail Missing Link refers to the long-planned multi-use trail safety improvements along 1.4 miles of Salmon Bay east of the Ballard Locks connecting the two existing sections of the Burke-Gilman Trail in Ballard.

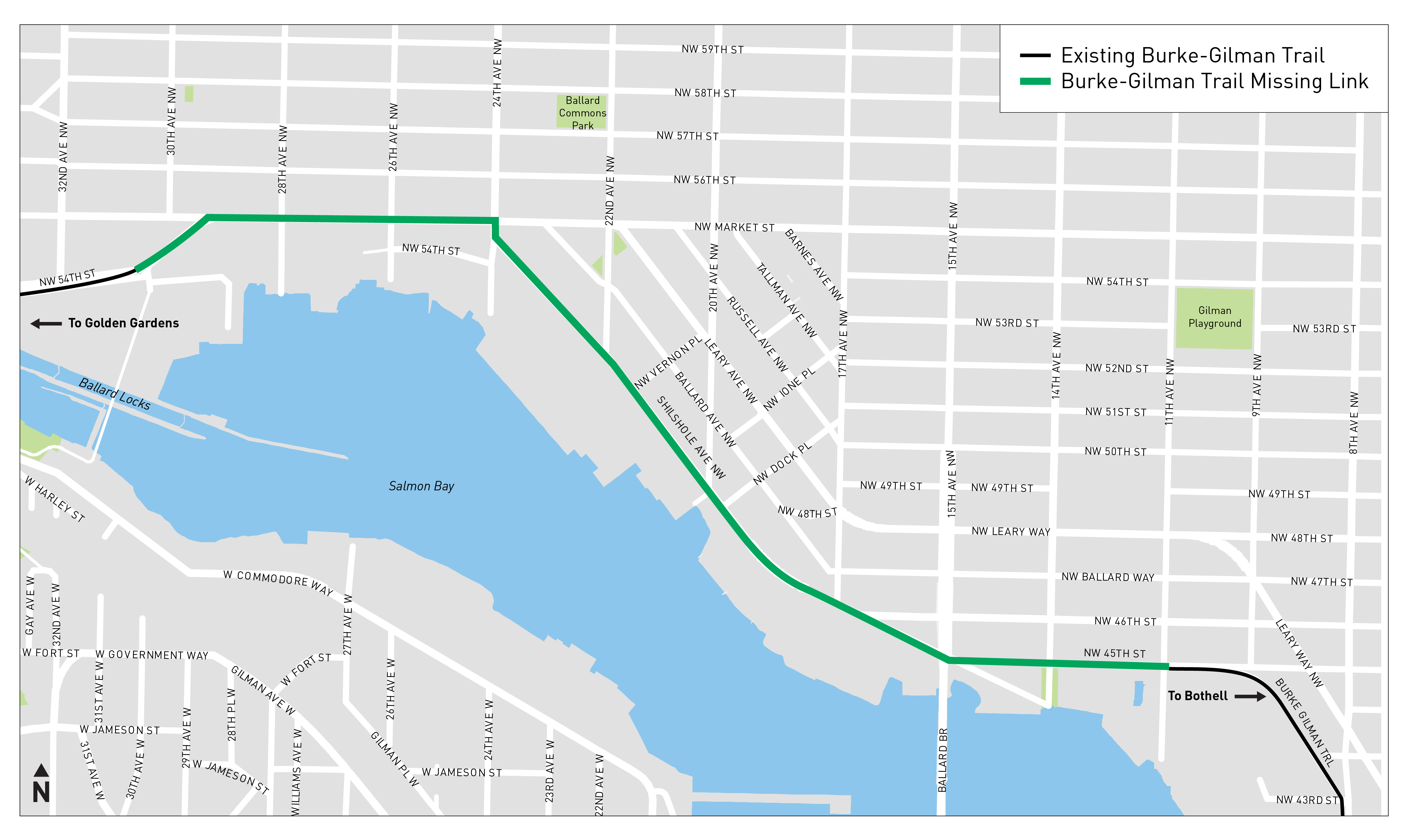

Phase 1 and 2 map

The trail currently serves hundreds of people walking and riding bikes along the corridor every day. The City has worked with the Ballard community on this critical safety investment since 2001 and included a commitment to complete the project as a part of the voter-approved Levy to Move Seattle. Legal challenges paused construction on the Missing Link, while other pieces of the Ballard Multimodal Corridor Project (Including street paving, traffic signal improvements, transit infrastructure, and new sidewalk construction) were completed. If you'd like to learn more about the design process for both projects, visit our project library below to review revised 100% design documents, event summaries, and the full Design Phase Outreach Summary. 

Cross Sections

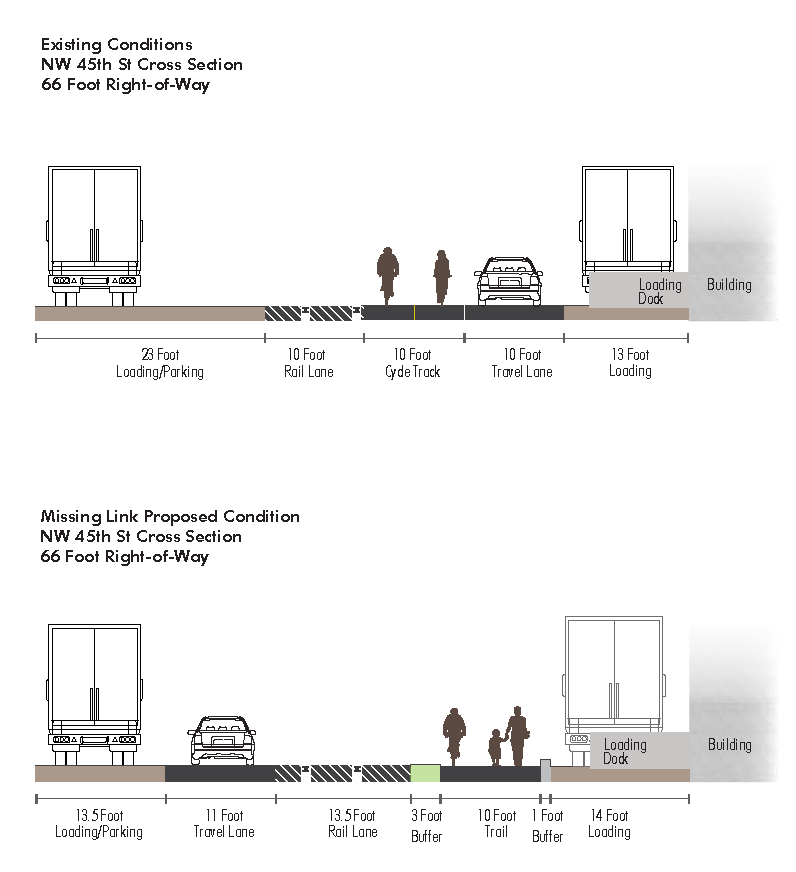

The cross sections below show the existing and proposed conditions for work on NW 45th St, Shilshole Ave NW, NW Market St, and NW 54th St.



Click this link to download a PDF showing all of the cross sections below

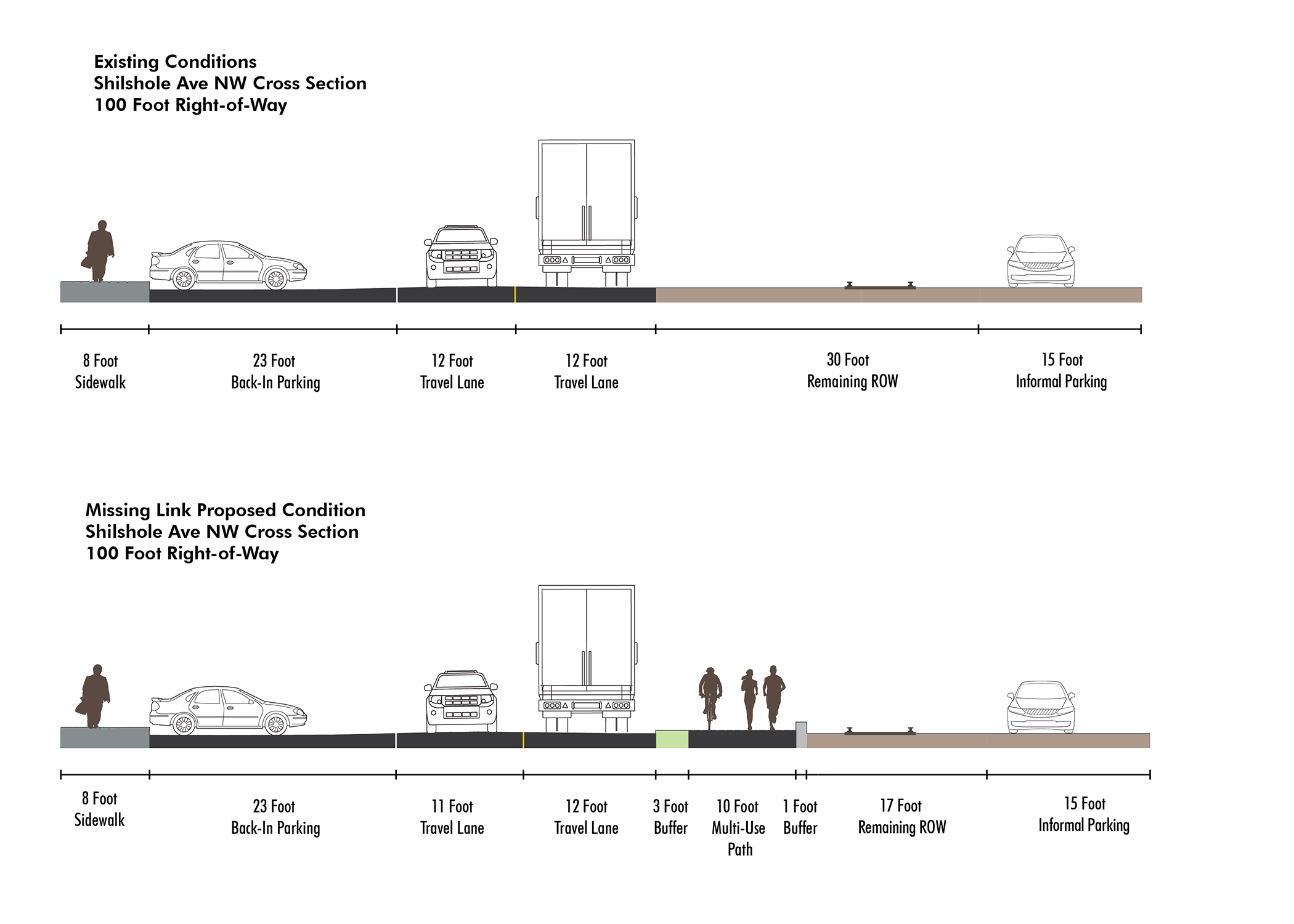

Proposed work on Shilshole Ave

Proposed work on Shilshole Ave

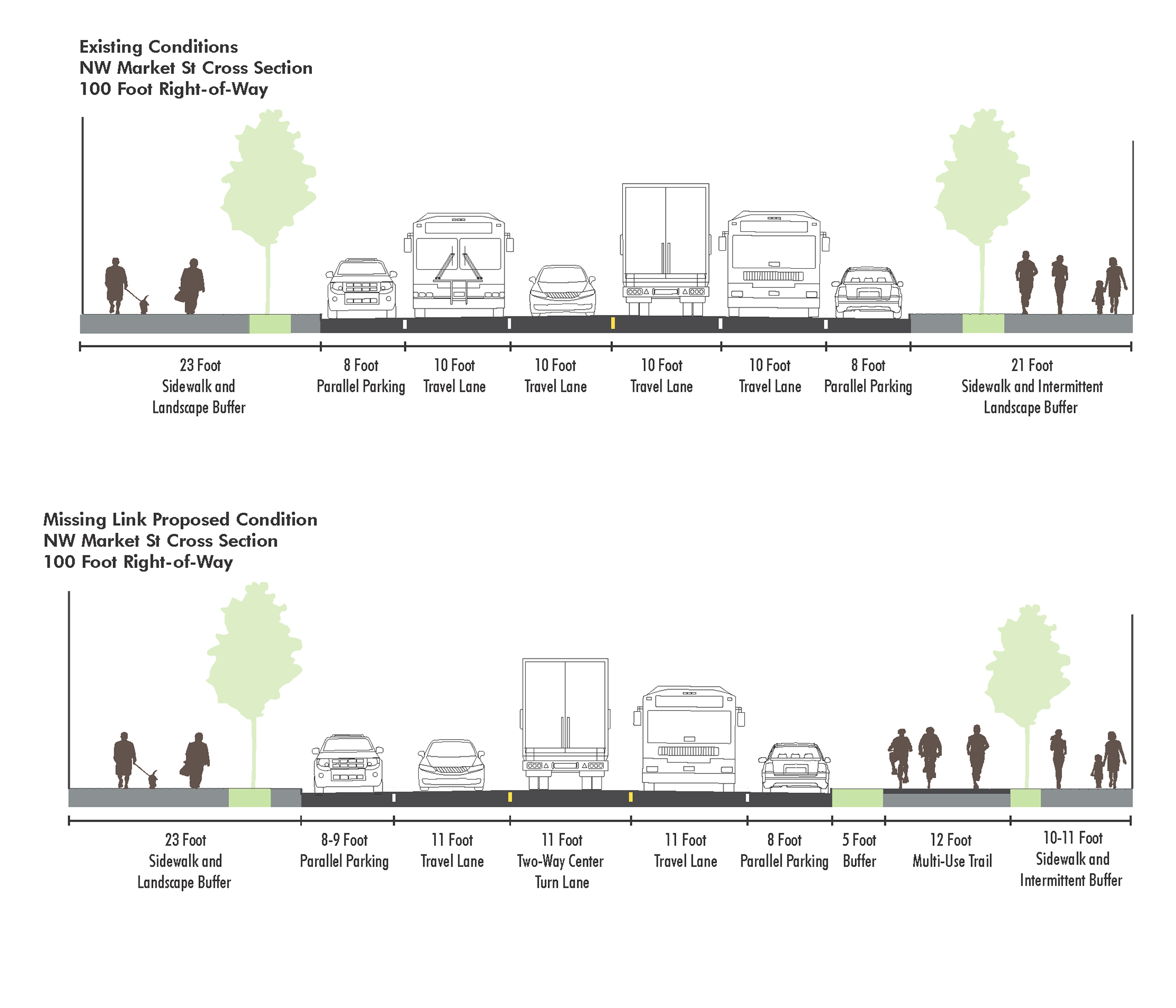

Proposed work on NW Market St

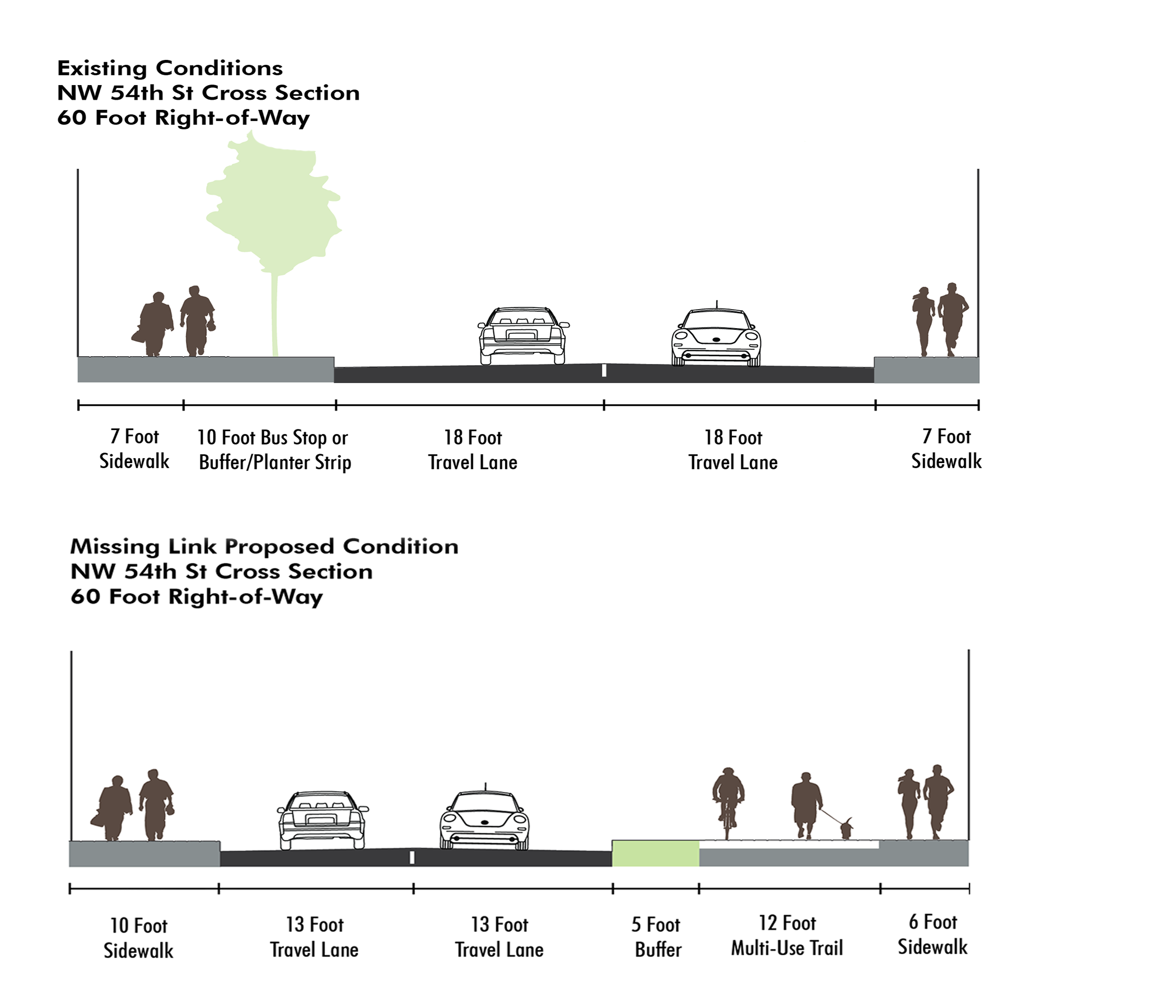

Cross section showing area of proposed work on NW 54th St

Anticipated Construction Timeline

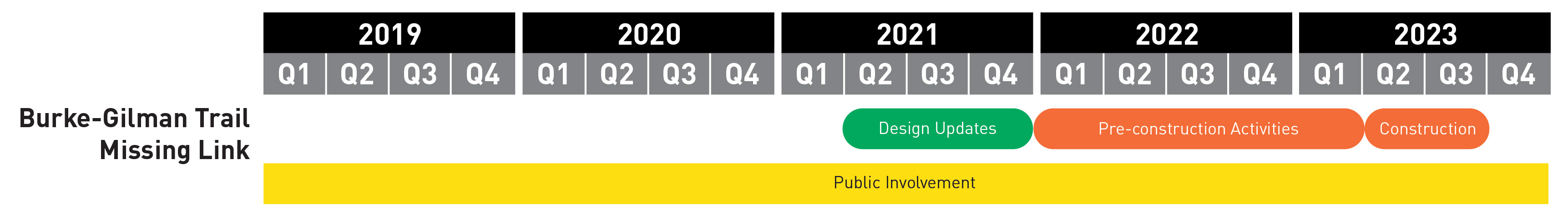

Construction timeline

Schedule 2019 - 2023

Construction for the Burke-Gilman Trail Missing Link is anticipated to begin in  2023.

NW 54th St and NW Market St
Q2 2023 Trail construction
Shilshole Ave NW and NW 45th St
Q1 2022 Design completion
Q1 2022 - Q1 2023 Pre-construction activities
Q2 2023 - Q4 2023 Construction

History of the Burke-Gilman Trail Project

The Burke-Gilman Trail is a regional, mixed-use facility that runs east from Golden Gardens Park in Seattle to the Sammamish River Trail in Bothell. The 20-mile trail serves as a major transportation corridor for commuters and recreational users. The trail is complete except for a 1.4-mile segment through the Ballard neighborhood, known as the "Missing Link." The Missing Link has been included in the City's comprehensive plan since the early 1990s and is identified as one of the City of Seattle's top-rated trail priorities in the 2014 Bicycle Master Plan. The City is committed to completing the Missing Link fulfill its commitment to the community and to be most efficient with taxpayer dollars.

Throughout the environmental review process, SDOT sought input from the community on potential routes and impacts through events and formal comment periods. Commenters on the Missing Link Project's Draft Environmental Impact Statement (EIS) expressed a strong preference for placing the route along Shilshole Ave NW. Of the over 4,400 comments received on the Draft EIS, 77% noted preference for the Shilshole South Alternative. However, a number of comments expressed concerns over placing the trail in front of the industrial and water-dependent businesses along the Shilshole corridor.

To inform SDOT's selection of a preferred corridor, SDOT further consulted with the local maritime, industrial, freight, bicycle, and pedestrian communities to select the Preferred Alternative, a combination of the Shilshole South and Shilshole North Alternatives. To learn more, read the project's frequently asked questions and answers

Completing the Burke-Gilman Trail will create a complete and predictable corridor that enhances safety for pedestrians, trucks, bicycles, and cars.

Conversations with stakeholders, property owners, and business owners during design of the Missing Link highlighted many opportunities to partner with other agencies and enhance streets adjacent to the trail.

Public Involvement

The Burke-Gilman Trail Missing Link and other multimodal improvements went through extensive environmental review that provided the community with many opportunities to learn more about potential route options and submit comments. In addition to outreach to key stakeholders and community groups throughout the environmental phase, public open houses were held in 2013, 2015, and 2016 to solicit input from the broader community on the Missing Link Project.

Design Advisory Committee

Throughout the design of the Missing Link Corridor, SDOT convened a Design Advisory Committee (DAC) to bring additional stakeholder perspectives. The DAC was convened following the completion of the final environmental review and the City's selection of a preferred route. DAC members met between May 2017 - September 2018 to provide feedback on SDOT's preferred alignment to improve trail design and balance the safety and needs of all users.  For more information, see the DAC work plan and Business Owner Workshops.

Property and Business Owner Workshops

In late June and early July 2017, the SDOT design team hosted workshops for business and property owners adjacent to the trail. SDOT held a follow-up workshop in late September 2017 to review the input received at previous workshops and to highlight changes implemented based on property and business owners' feedback.

The Project History documents much of the public involvement associated with the Missing Link, including past reports and designs.

Project Cost

The Burke-Gilman Trail Missing Link budget is approximately $7.4M and is funded by the Levy to Move Seattle and Seattle City Light. This cost covers 1.4 miles of trail plus roadway paving, lighting (street and pedestrian-scale), drainage infrastructure, intersection and driveway crossing infrastructure (RRFBs and Driveway Warning Systems), pedestrian improvements, and landscaping.

Environmental Review

As described As described above, the design of the Burke-Gilman Trail Missing Link project was recently refined. The redesigned project meets SEPA exemption criteria and does not require a threshold determination or EIS. 

As previously designed, the original project was subject to SEPA review, and SDOT completed an Environmental Impact Statement (EIS) that fulfilled the SEPA requirement. The Final EIS was published in 2017 with an addendum issued in 2019. While not applicable to the redesigned project, the SEPA EIS and addendum can be viewed using the links below.  

Review the Final EIS.

Review the Final EIS Addendum.

Printed copies of the Final EIS Executive Summary are available to the public at no charge. Printed copies of the Final EIS, comment responses, and technical appendices are available for purchase by calling (206) 775-8715 or emailing BGTMissingLink@Seattle.gov.

Materials

Phase 1 and 2 Design

Burke-Gilman Trail Missing Link Design Phase Documents

Design Phase Property Owner, Business Owner, and Public Events

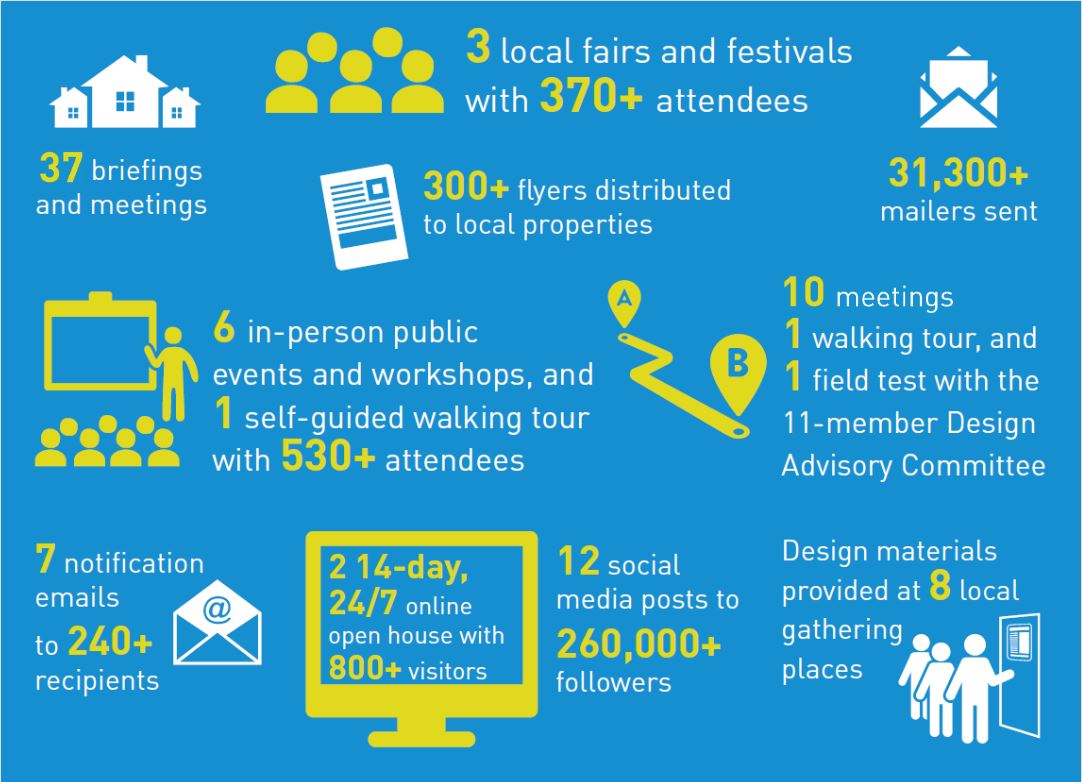

37 briefings and meetings, 6 in-person public events, 1 self guided walking tour with over 530 attendees, 7 notification emails to over 240 recipients, 3 local fairs and festivals with over 370 attendees, over 300 flyers distributed, 31,300 mailers sent, 12 social media posts to over 260,000 followers, two 14-day, 24/7 online open house with over 800 visitors, and design materials provided at 8 local gathering places.

Design phase outreach

Conceptual Design Segment Workshop series for adjacent property and business owners

Conceptual Design Outreach (July 2017)

Schematic Design Outreach (October 2017)

Below is a basic timeline of the project. For a history of the whole Burke-Gilman Trail, visit its history page.
